Cost effective, space efficient cycle parking with a narrow footprint and high density spacing.

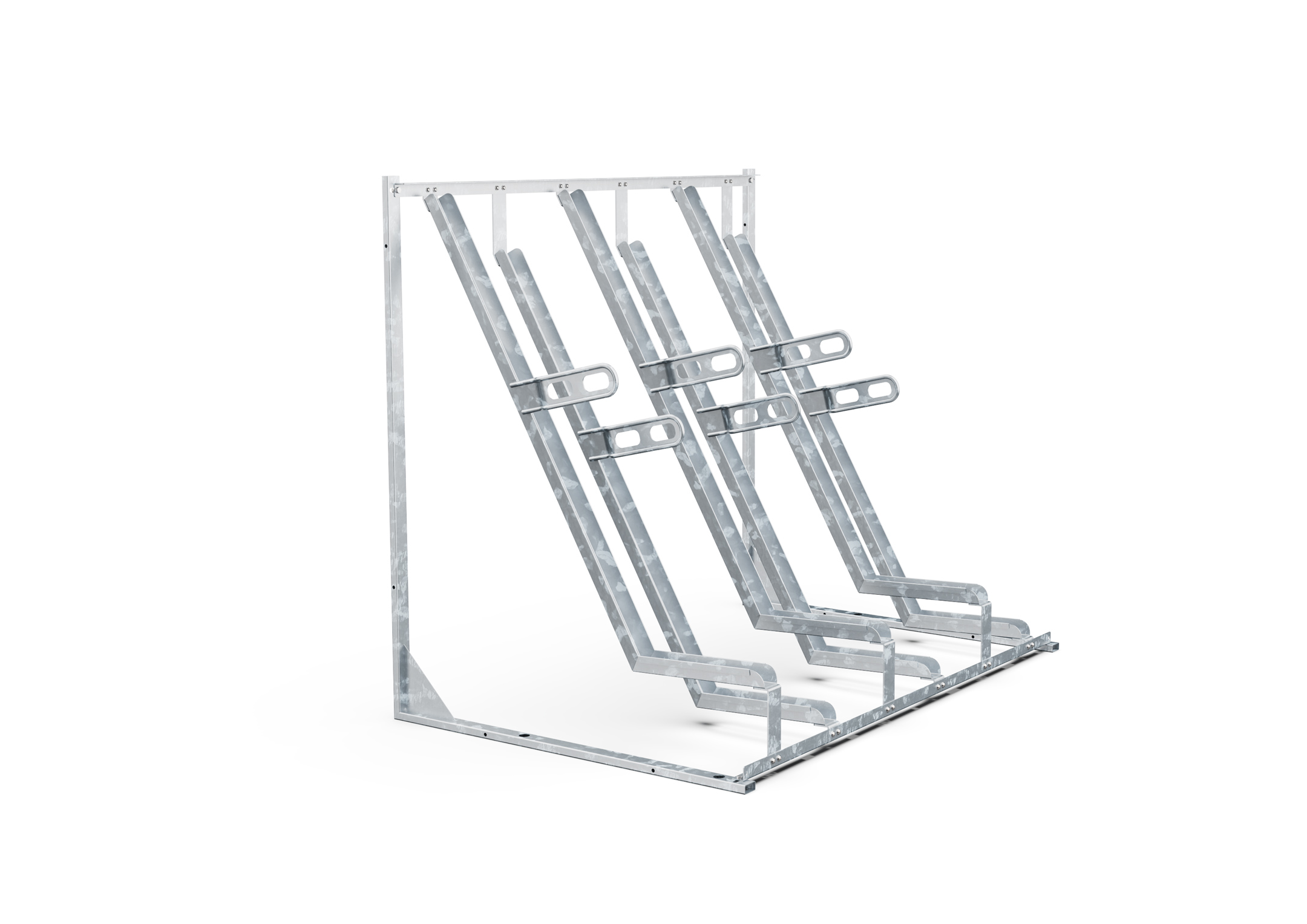

The SecurePro Semi Vertical Rack maximises capacity without compromising on quality. Each space features a robust steel channel, a locking point and two wheel holder cutouts.
At just 1260mm deep, it has a much smaller footprint than horizontal parking facilities; ideal for making use of narrow spaces at workplaces, campuses, residences and leisure facilities.
Each channel is spaced at 305mm intervals with alternating heights to allow the handlebars to overlap. Installation is fast and easy, with just two ground fixings per side frame. The horizontal rails are available in 3,4, 5 and 6 space lengths and can be connected in any combination to fit the space available.

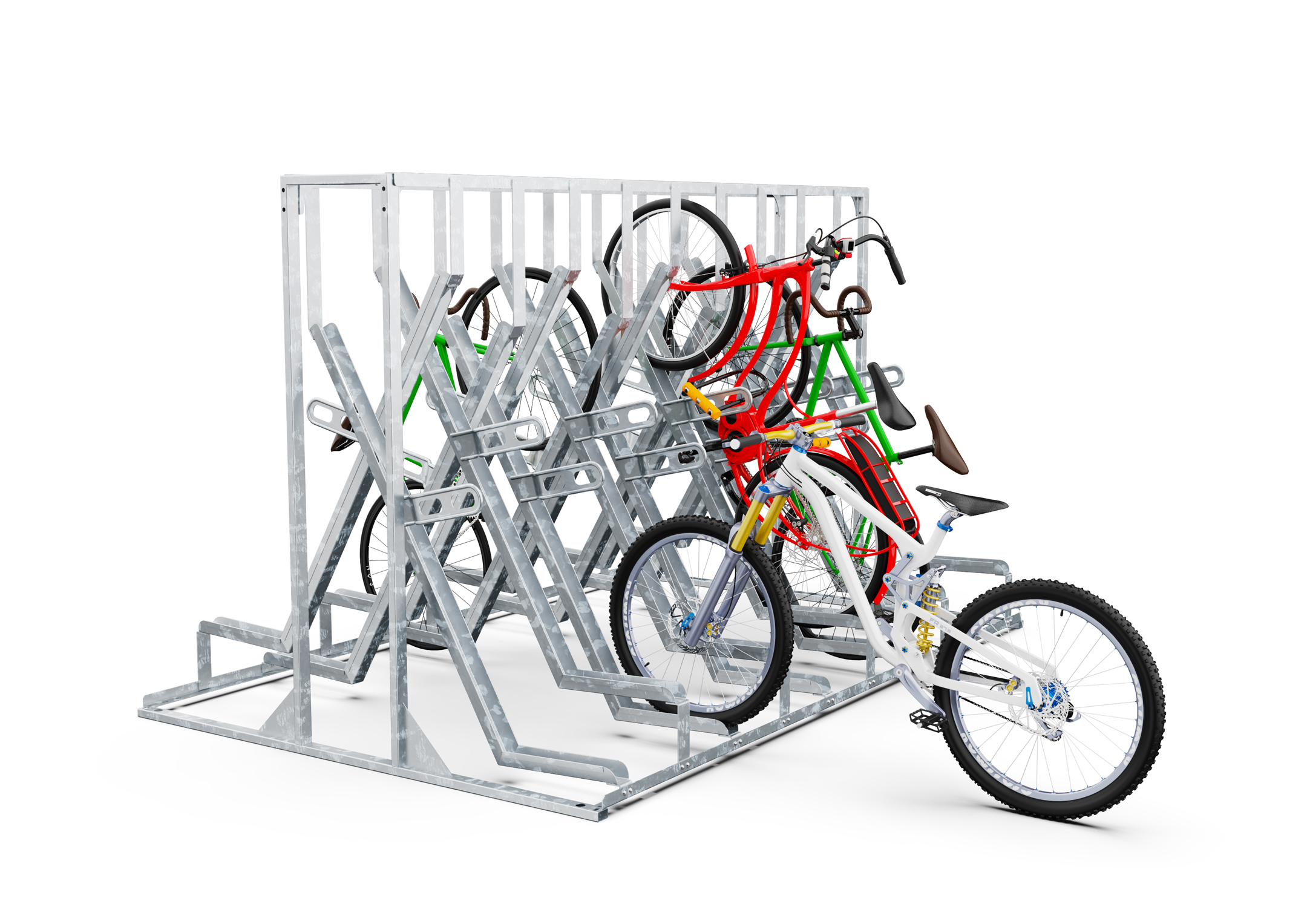

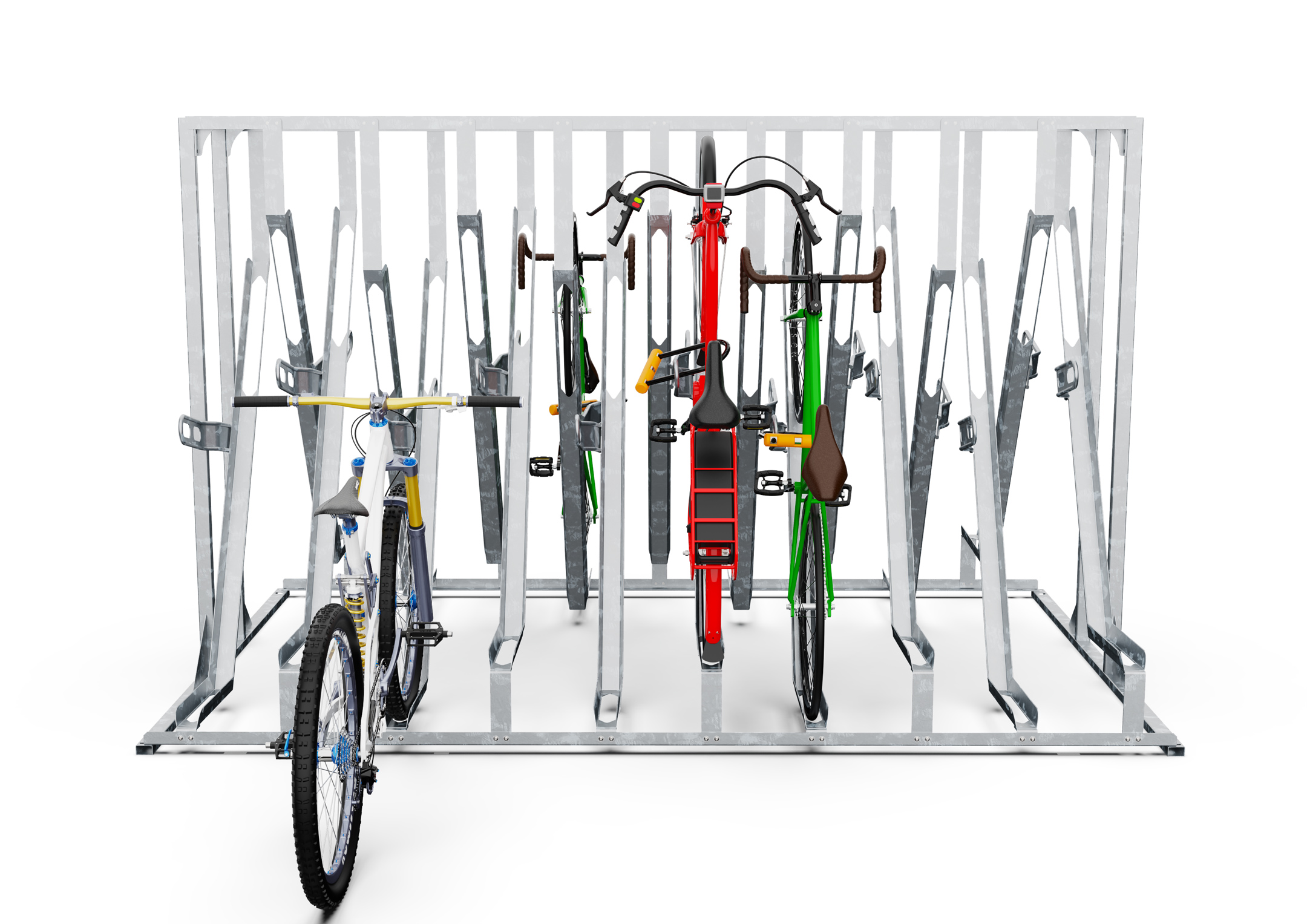

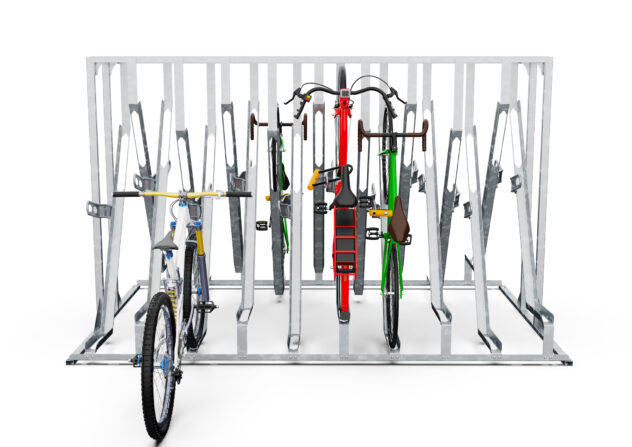

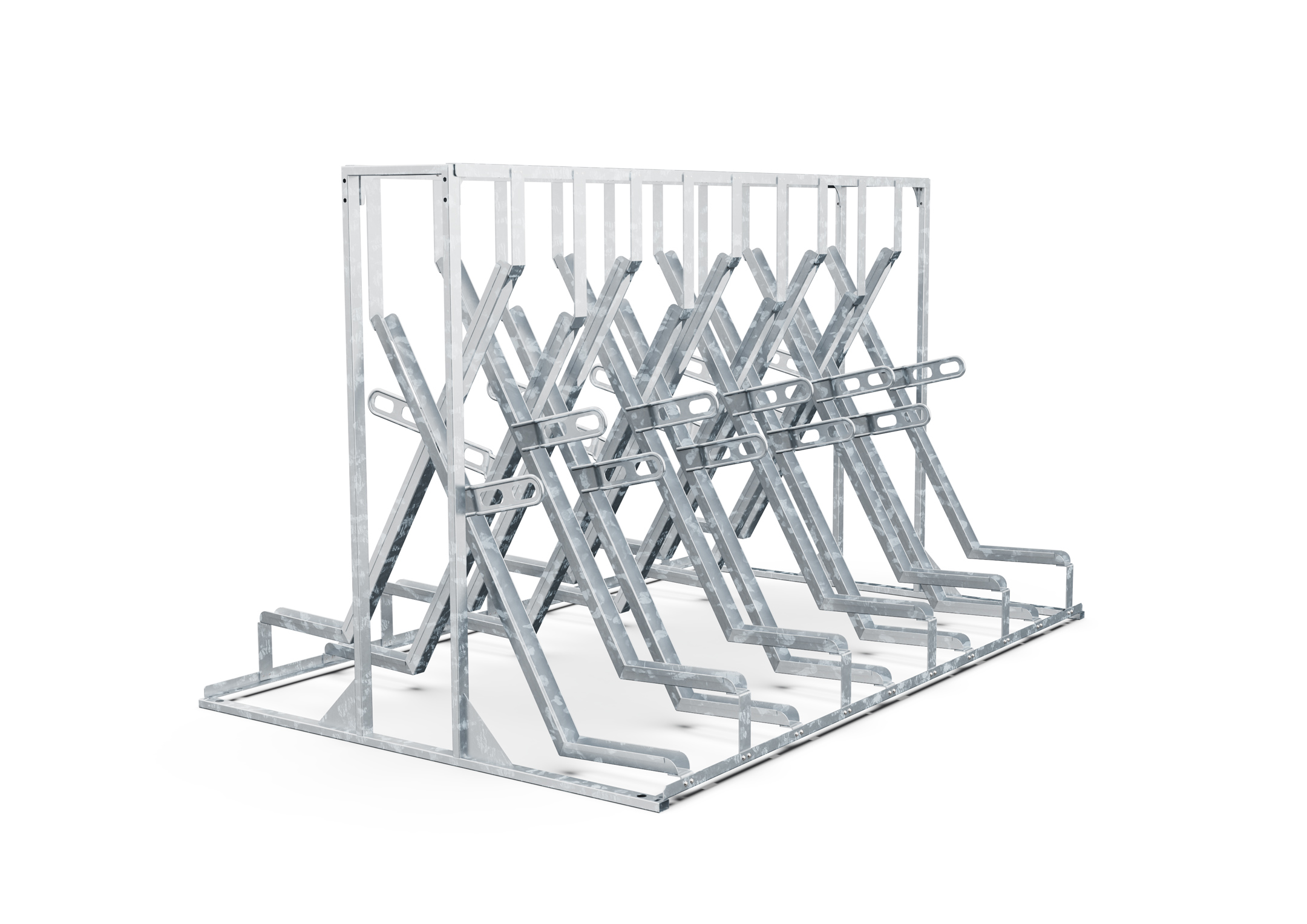

For arrangements with a central island, space can be optimised further with the double-sided version. Standing at 1970mm deep, the overlap between the channels saves 550mm over two single sided units back-to-back. This leaves clearance for loading that can be shared with racking positioned opposite. The horizontal rails are available in 6,8, 10 and 12 space lengths.

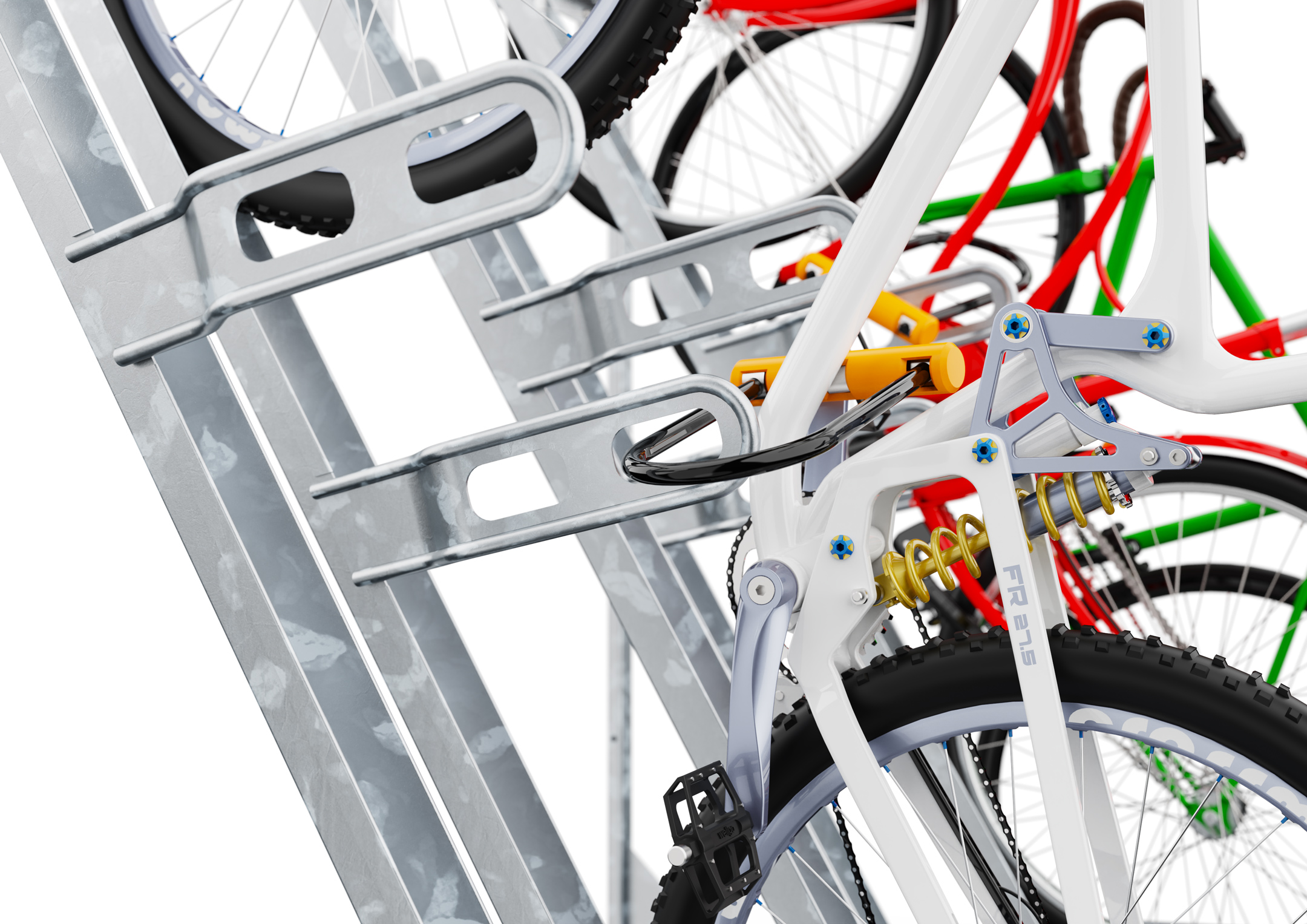

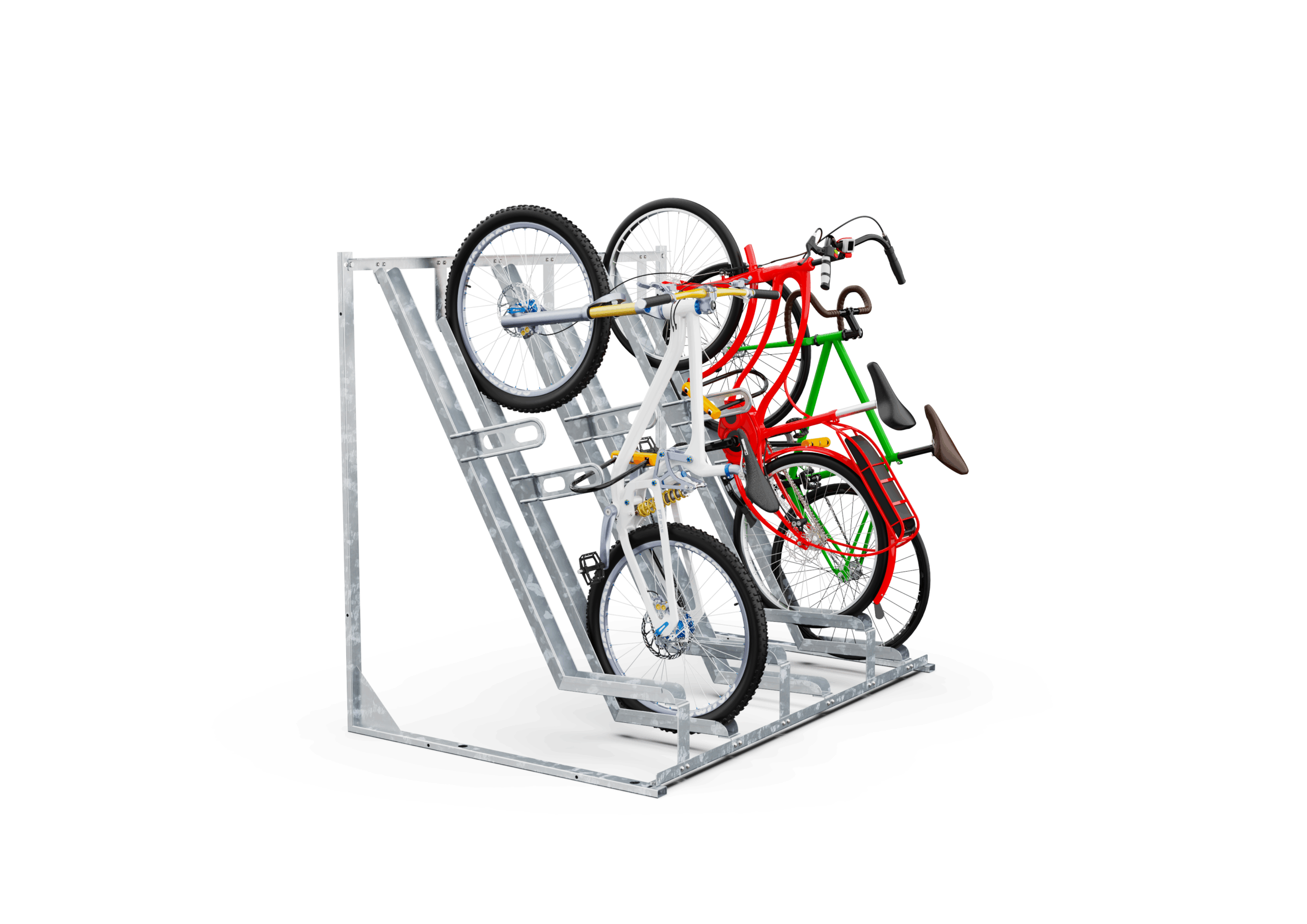

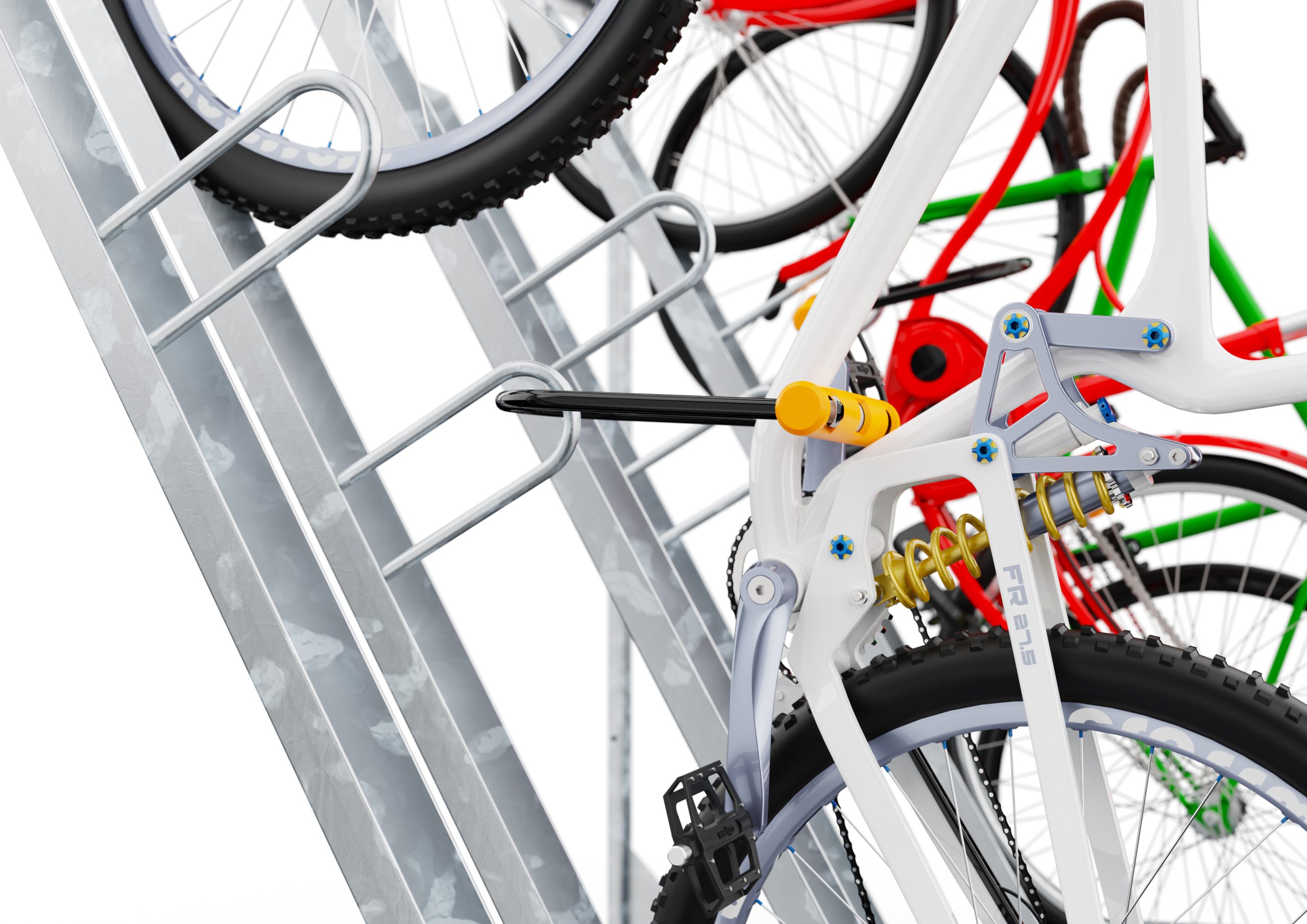

The SecurePro Semi Vertical Rack keeps bikes secure and organised with ease, the bike can be stood on the rear wheel and fed into the lower channel, or the front wheel can be lifted onto the upper channel and the bike can be rolled up until the wheels rest in the cutouts. The locking point is positioned so a medium shackle D-lock can reach the frame.

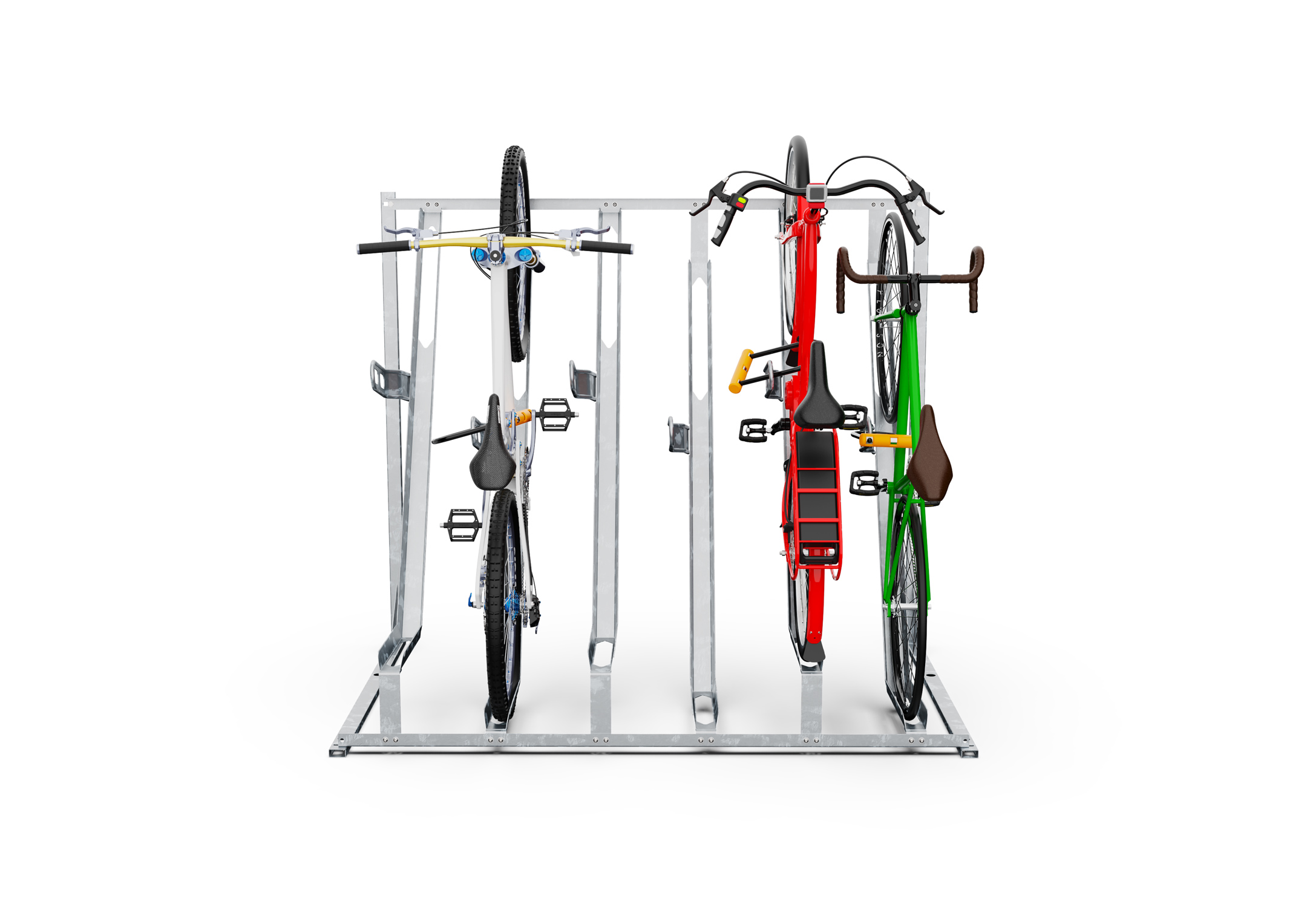

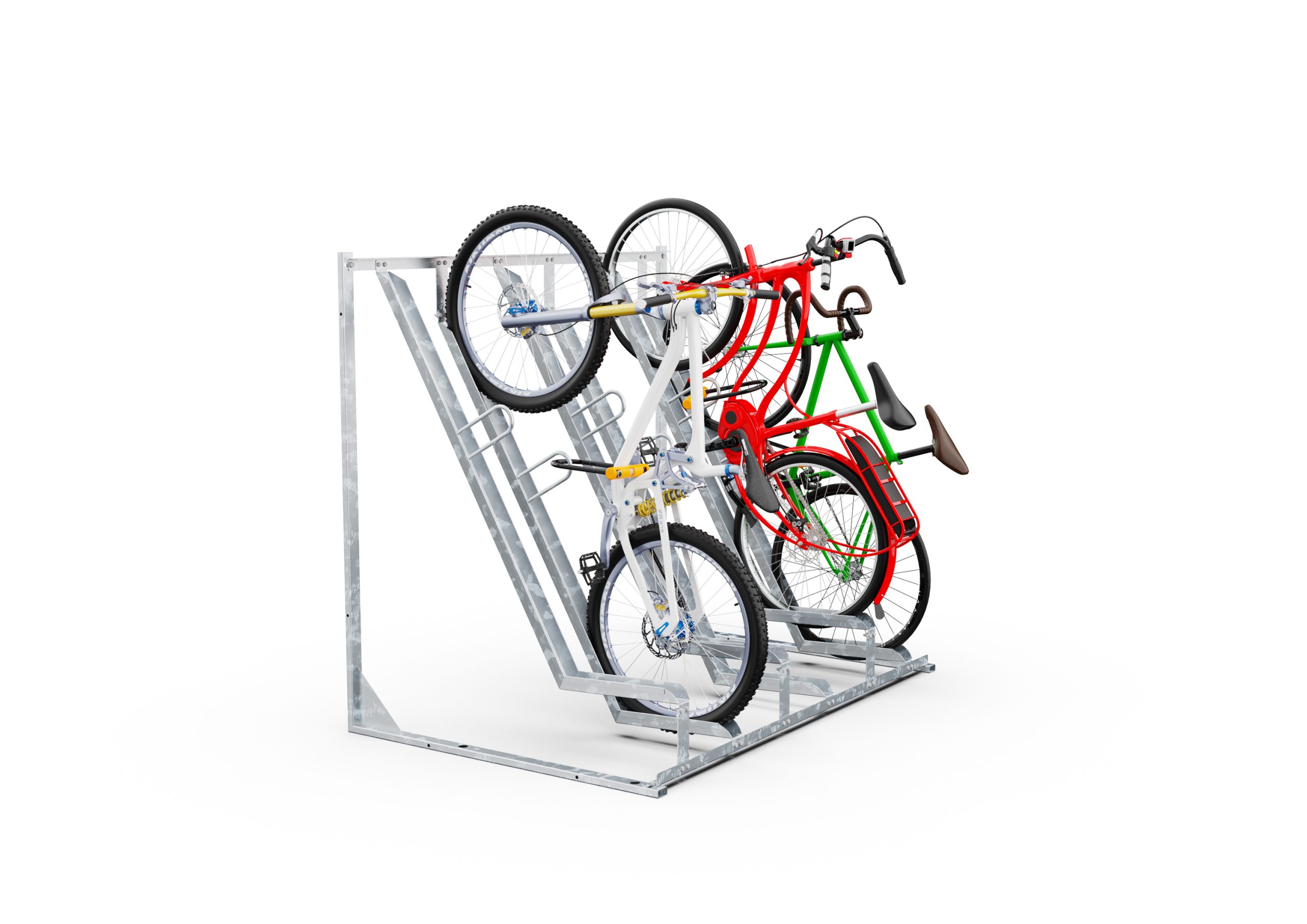

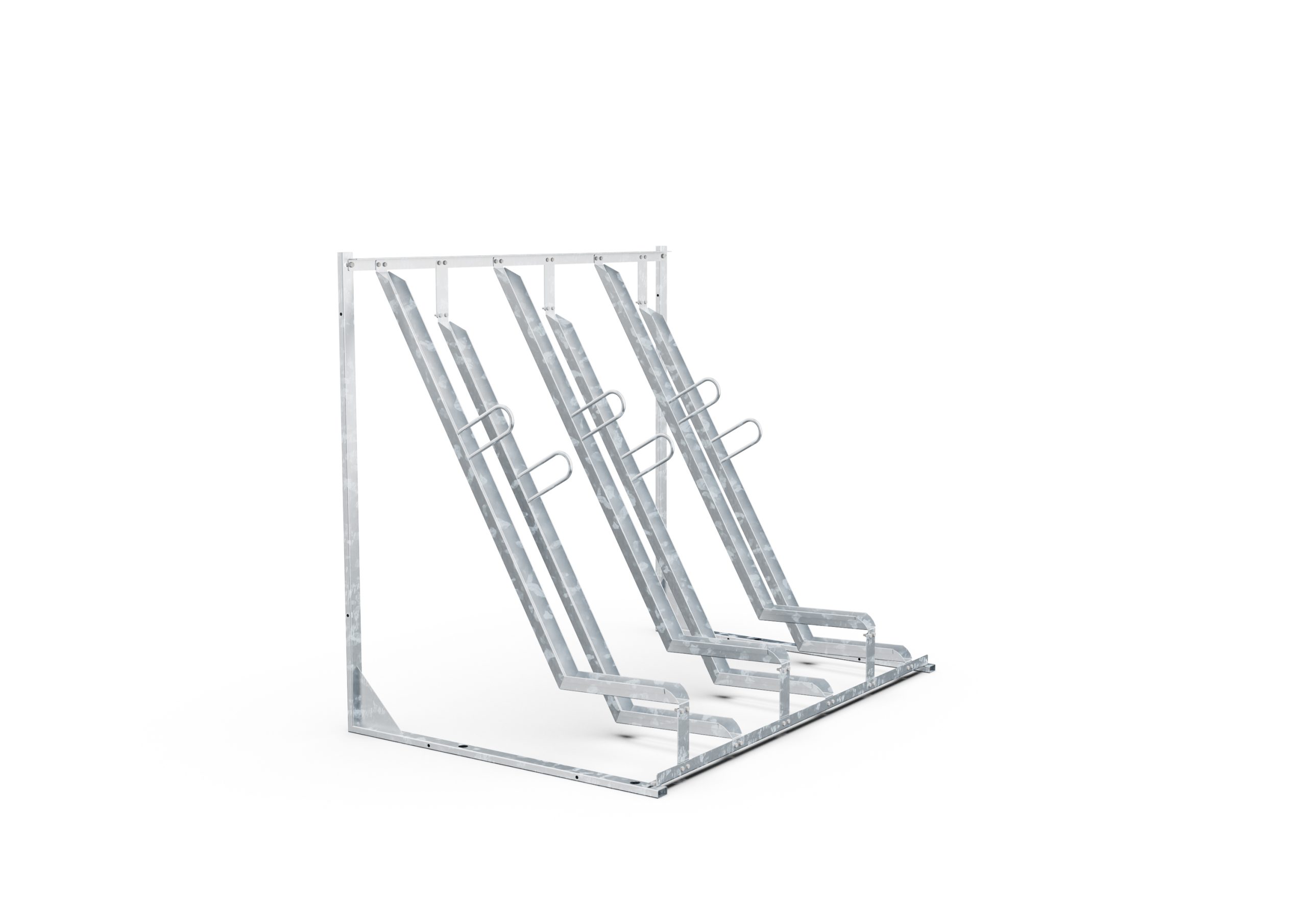

Single sided

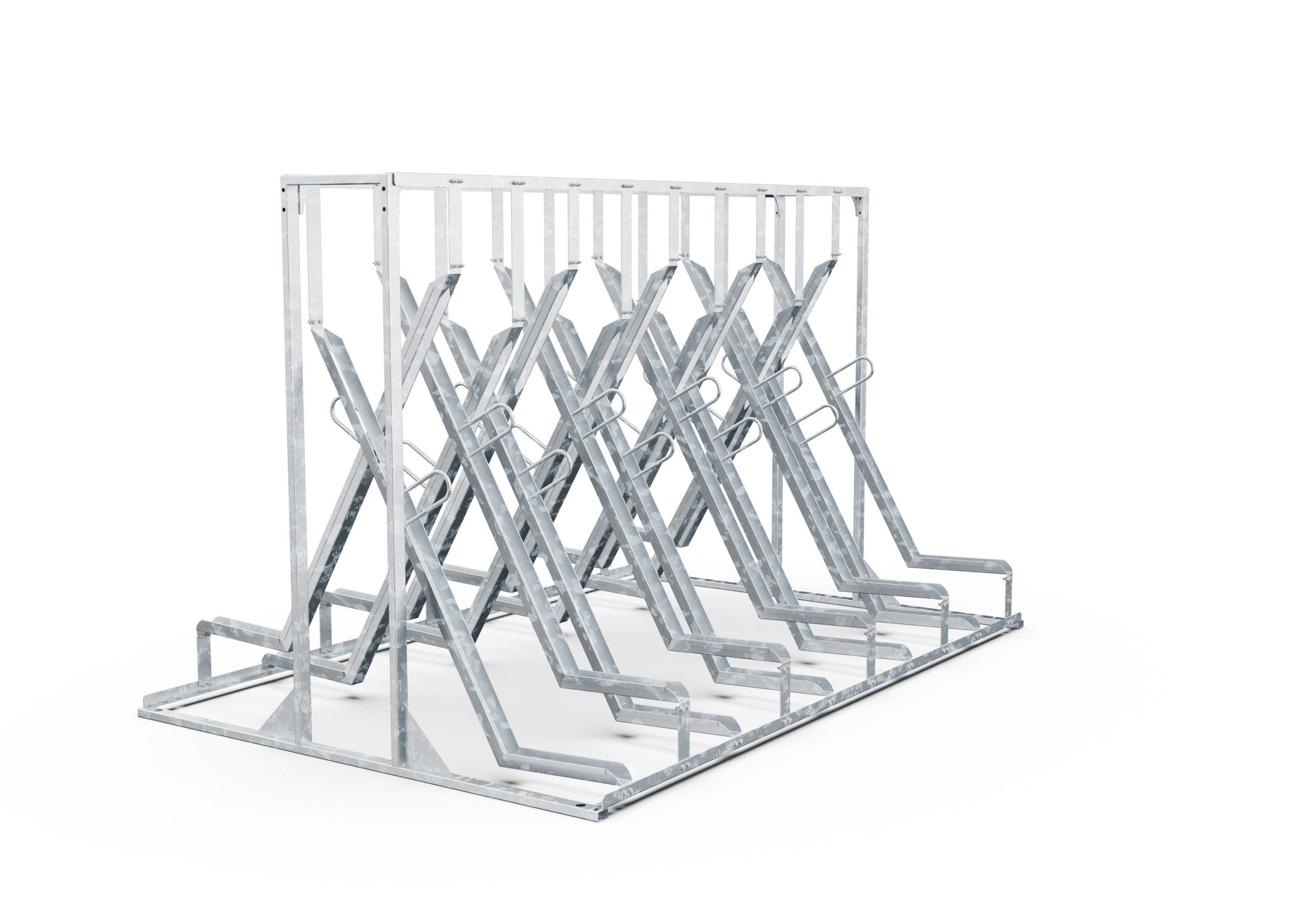

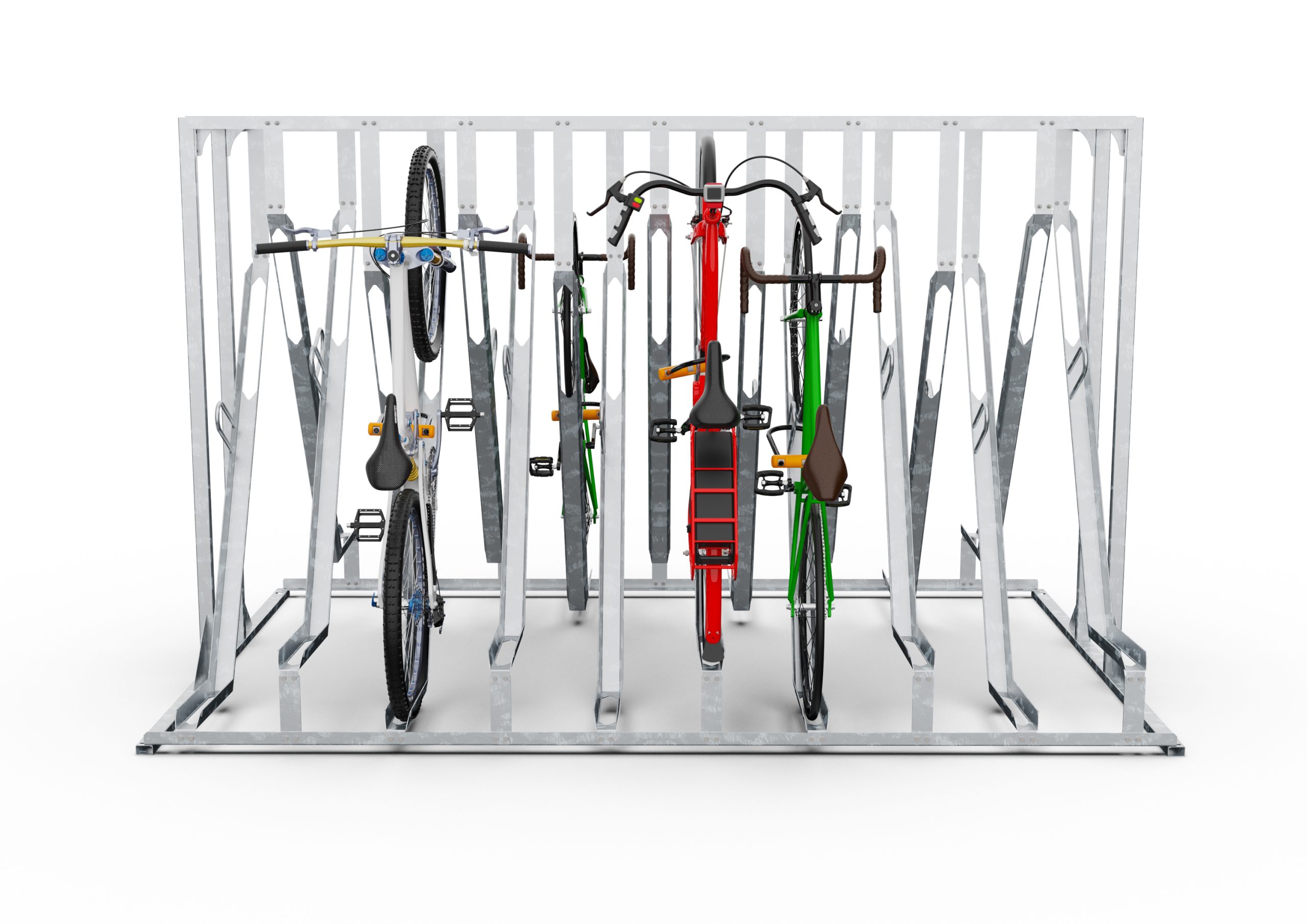

Double sided
